Sch80 Carbon Steel Reducer WPB Butt Welding Eccentric Weld Reducer
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 | Price : | 0.17 |
|---|---|---|---|
| Packaging Details : | Wooden box /Wooden pallet | Delivery Time : | 10 Work days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 99999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Color: | Black Painting | Material: | Carbon Steel |
|---|---|---|---|
| Size: | 4"*2" | Surface: | Sand Blasting Black Oil |
| Product: | Concentric Reducer | Technics: | Forged |
| Coutry Original: | China | Port: | Tianjin |
| High Light: | Buttweld Carbon Steel Reducer,Concentric Carbon Steel Reducer,Sch 40 Seamless Concentric Reducer |
||
Product Description
Carbon Steel Reducer Concentric Reducer Seamless Reducer Sch 40
The reducer (large and small head) is a kind of pipe fitting used in the reducing diameter of the pipeline. The commonly used forming process is reducing diameter pressing, expanding diameter pressing or diameter reducing and expanding diameter pressing. Stamping can also be used for reducers of certain specifications.
National standard American standard British standard and various non-standard high pressure stamping "steel plate butt welded pipe fittings" GB/T13401-2005 stipulated reducer standard
The quality of the reducer should comply with the current national standard "Steel Butt Welded Seamless Pipe Fittings" GB/T 12459-2005
Products Description:
| Material | ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, |
| Standard | ASTM / JIS / DIN / BS / GB/GOST |
| Dimension:ISO 49,DIN 2950,EN10242,Seam Or Seamless | |
| Physical Property | Tensile strength>=350Mpa,Elongation>=10%,Hardness<=150HB |
| Testing Pressure | 2.5MPa |
| Working Pressure | 1.6MPa |
| Surfacetreatment | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize |
| Wall thickness | SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, |
| SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM | |
| Model | Elbow,Tee,Flange,Cap.Coupler |
| Connection | Welding |
| Shape | Equal,Reducing |
| Certificate | ISO9001,API,UL. |
| Application | Suitable for fire piping system,air,gas,oil and so on |
| Buyer's drawing or designs are available | |
| Package | Cartons without pallet,Cartons with pallet,Double woven bags,Or as buyer's requirements |
| Delivery Details | According to the quantities and specifications of each order |
| Normal delivery times is from 30 to 45 days after receiving the deposit |
| Type | Reducer |
| Size | Seamless Reducer:1/2"~24" DN15~DN600 Welded Reducer: 1/2"~100" DN15~DN2500 |
| Wall thickness | sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s |
| Standards | ANSI B16.9,MSS SP-95, GOST 17375,DIN2566,JIS |
| Material | Carbon steel: ASTM/ASME A234 WPB,WPC,ST37,ST52 Alloy steel: ASTM/ASME A234 WP 9-WP 12-WP 11-WP 22-WP 5-WP 91-WP 91 Stainless steel: ASTM/ASME A403 WP 304-304L,WP 316-316L,WP 321 |
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized |
| Packing | wooden case, pallet or as customers' requirement |
| Applications | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| Min order | 1 piece |
| Delivery time | 7 after receipt of advanced payment |
| Certification | API, ISO9001:2000 |
| Delivery Term | FOB(30% down payment in advance, the balance before shipment) CIF or C&F(30% in advance , the balance against with the copy of B/L) |

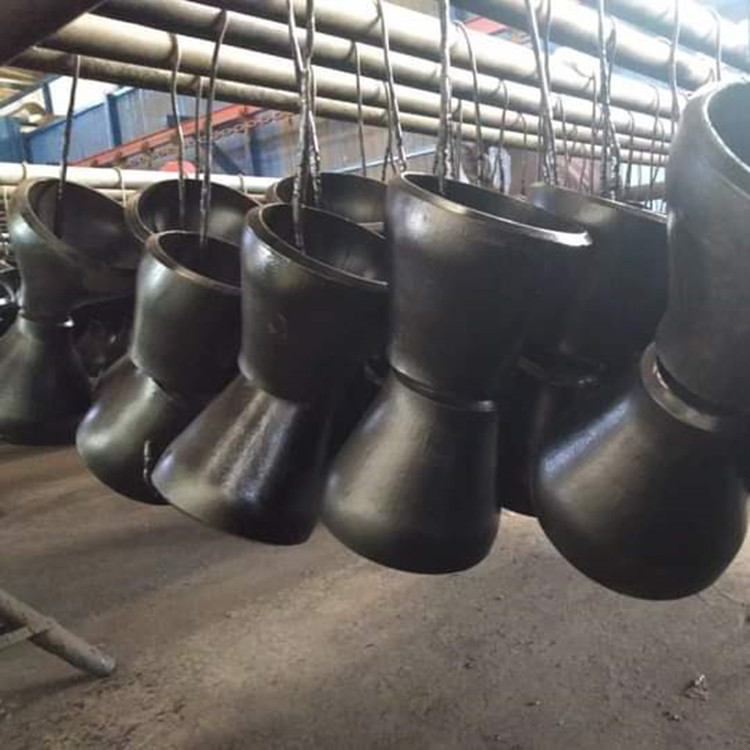

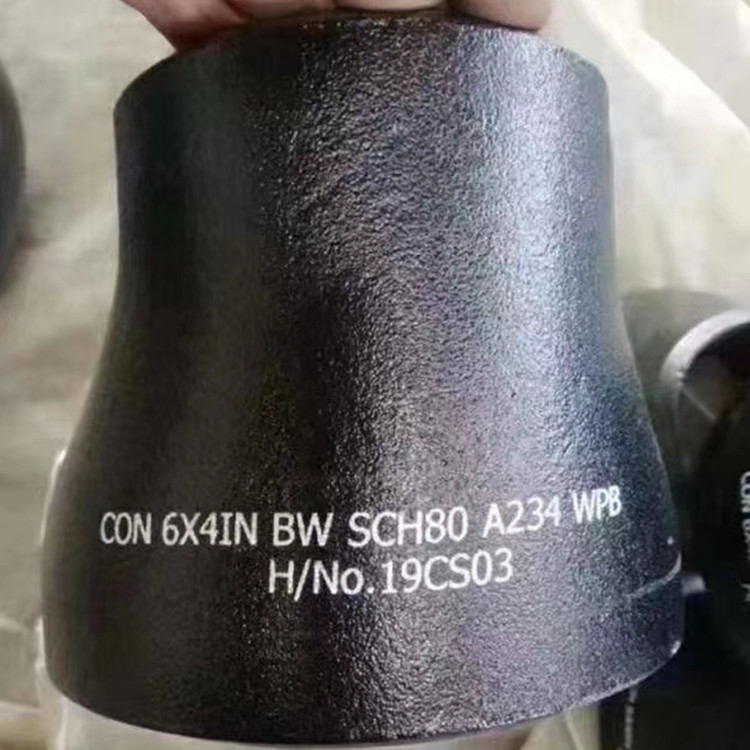

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
