Dn100 Butt Welding Fittings STD Sch40 90 Degree Black Pipe Elbow
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 | Price : | 0.15 |
|---|---|---|---|
| Packaging Details : | wooden box/wooden pallets | Delivery Time : | 10 |
| Payment Terms : | T/T, D/P, L/C | Supply Ability : | 9999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Name: | Flanges | Material: | St20# ,Q235,S235,A105,P245GH,P250GH |
|---|---|---|---|
| Technics: | Forged | Surface: | Rust-proof Oil, Yellow Paint |
| Package: | Plywood Cases | Pressure: | PN10/PN16 |
| High Light: | Q235 Carbon Steel Blind Flange,PN10 Carbon Steel Blind Flange,PN16 Forged Blind Flange |
||
Product Description

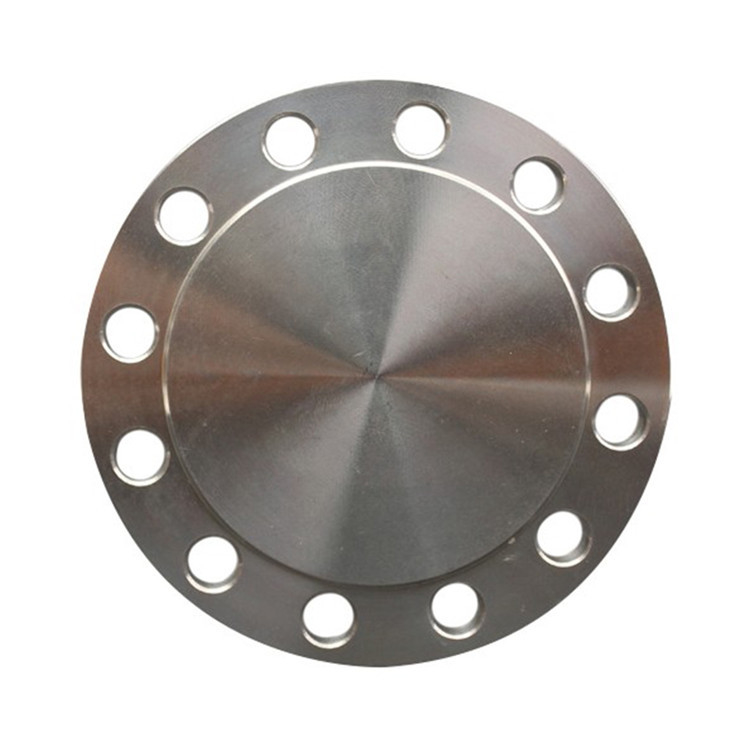

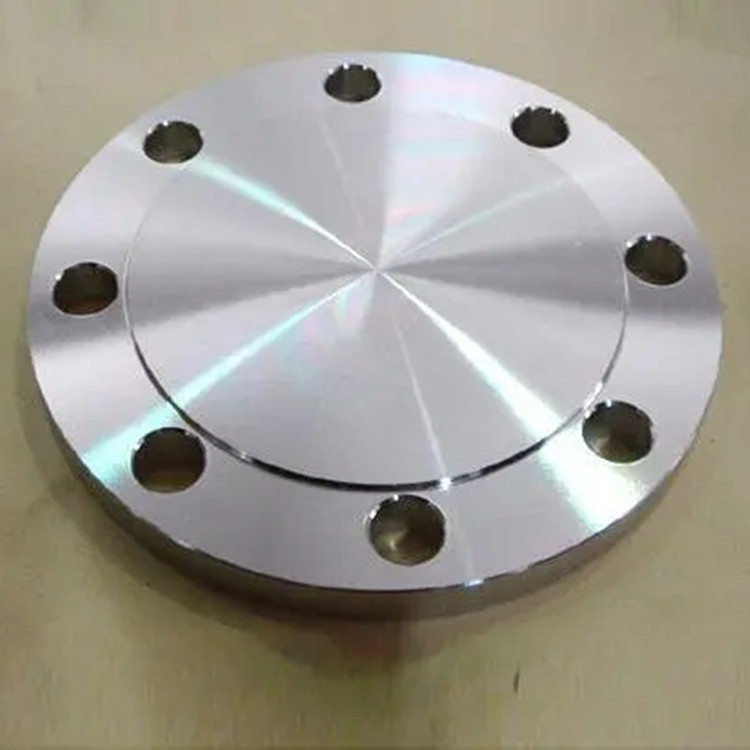

Carbon Steel Blind Flange Q235 20 Steel Material PN10 PN16 PN25 Forged Blind Flange
Blind flanges are a form of blanking plate that is bolted to another pipe flange to isolate a section of piping or terminate piping.
A flange is a protruding ridge or rim, often used to increase strength or spread the load. For example, sectional beams often have flanges that carry most of the load and that are connected by a web joining the flanges together. Pipes may also be fitted with flanges, which provide attachments. Nuts and bolts may include flanges to spread the clamping force over an increased area.
Products Description:
Steel Flanges |
||
| Flange Type | Weld Neck Flange, Socket Weld Flange, Slip On Flange, Blind Flange, Thread Flange, Lap Joint Flange, Plate Flange, Orifice Flange, Spectacle Flange, Figure 8 Flange, Paddle Blank, Paddle Spacer, Anchor Flange, Single Blind, Ring Spacer, Reducing Socket Weld flange, Reducing Weld Neck flange, Long Weld Neck Flange SAE Flanges, Hydraulic Flanges, Customized Flanges with drawing. |
|
| Material | Carbon steel | A105, A105N, ST37.2, 20#, 35#, C40, Q235, A350 LF2 CL1/CL2, A350 LF3 CL1/CL2, A694 F42, F46, F50, F60, F65, F70, A516 Gr.60, Gr.65, Gr.70 |
| Alloy steel | A182 F11, A182 F22 | |
| Austenitic stainless steel | A182 F304/304L, F316L, A182 F316H, F310, F321, F321H, F347, F347H |
|
| Duplex stainless steel | A182 F51 | |
| Super Duplex stainless steel | A182 F53, A182 F55, A182 F60 | |
| Nickel alloy | Nickel 200, Nickel 201 | |
| Titanium alloy | Titan Gr.1, Titan Gr.2 | |
| Hastelloy | Hastelloy C-276, Hastelloy C-22, Hastelloy C-4 | |
| Inconel | Inconel 600, Inconel 625, Inconel 800, Inconel 800H |
|
| Monel | Monel 400, Monel K500 | |
| Size | DN15 - DN3000 | |
| Pressure | Class 150# - 2500#, PN 2.5- PN40, JIS 5K - 20K, 3000PSI, 6000PSI | |
| Connection Way | Flat Face (FF), Raised Face (RF), Ring Joint (RTJ), MFM, TG | |
| Standard | ASME, ANSI, DIN, EN, BS, JIS, GB, AWWA, API, SAE, GOST, MSS | |
| Technical | Forged | |
| Package | Plywood Case/ Wooden Case/ Customized Package | |
| Brand | Qishine | |
| Certificates | API, ISO, PED, EC, EU | |
Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment?
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
