ASME B16.9 Carbon Steel Bend Dsaw Sch40 90 Degree 5D Black Pipe Fitting
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 piece | Price : | 0.15$ |
|---|---|---|---|
| Packaging Details : | Wooden box Wooden pallet | Delivery Time : | 10 Work Days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 99999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Bending Angle: | 15 Deg 30 Deg 45 Deg 90 Deg | Product Name: | ASTM A860 Wphy 42 5D Carbon Steel Pipe Fitting Bend |
|---|---|---|---|
| Straight Length: | According To The Clients′ Requirement | Surface: | Sand Rolling, Sand Blasting ,Acid Cleaning. |
| Bending Radius: | 3D, 4D, 5D, 6D, 7D, 8d, 9d, 10d | Connection: | Welding |
| Size: | 0.5"-60" | Material: | ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L |
| Applications: | Petroleum,chemical,power,gas,metallurgy, Shipbuilding, Construction, Etc | Process Method: | Polished, Cold Drawn, Annealed With Nitrogen Protection, Ultrasonic,automatic Shape Etc |
| Wall Thickness: | 1.5 Mm / 2.0 Mm / 3.0 Mm | Standards: | ASME/DIN/EN/ASME B16.9 |
| High Light: | WPHY Carbon Steel Bend,A860 Carbon Steel Bend,ANSI B16.9 90 Degree Pipe Bend |
||
Product Description
Pipe Fitting Bend Carbon Steel Bend Black Color Ansi B16.9 A860 Wphy Dsaw Bend 3 D 90 Degree
Pipe fitting bend has become a necessary item for transporting materials.
Medium frequency pipe fitting bend is a common pipe in engineering, which has a great function. When the user chooses, its heat transfer coefficient often becomes the place that some users should pay attention to when choosing. The following is the introduction of its heat transfer coefficient:
1.The precipitation hardening of medium frequency pipe fitting bend depends on iron content.
2.Reusing Mo and B can improve the performance of medium frequency pipe fitting bend.
3.The heat transfer performance of medium frequency pipe fitting bend is better than that of other metals with higher thermal conductivity.
Products Description:
| O.D. | Seamless: From 1/2" up to 24" DN15-DN600 Welded: From 26" up to 80" DN650-DN2000 |
| W.T. | Sch10, Sch20, Sch30, Sch40, STD, Sch80, XS, Sch120, Sch160, XXS |
| Bending Radius (R) | R=3D 4D 5D 6D 7D 8D 9D 10D. |
| Bending angle (θ ) | 15o 30o 45o 60o 90o 135o180o, and also could manufacture according to the angles given by the clients. |
| Straight Length (L) | The length between two ends general from 300mm-1500mm, and also can produce according to the clients' requirement to product. |
| Material | A234-WPB, A420-WPl6, A234-WP11, A234-WP5, A403-WP304, A403-WP304L, A403-WP316, A403-WP316L, SS304, SS304L, SS316, SS316L |
| Application Standard | ASTM B16.9, ASTM B16.11, ASTM B16.28, JIS B2311/2220, DIN2617/2616/2615/2391 |
| Forming | Hot formed, cold drawn |
| Type | Seamless and Welded, LR & SR |
| End | Bevel, plain, thread, socket |
| Surface Treatment | 1) Sandblasting 2) Paint black lacquer or transparent oil on surface to prevent corrosion |
| Application | Petroleum industry, refinery company, fertilizer industry, power station, shipbuilding, onshore platform. |
| Packing | 1) Seaworthy wooden box for fittings with size from 1/2" ~ 14" 2) Seaworthy wooden pallet for fittings with size above 14" 3) According to the packing requirement of clients |
| Weight | Weight (kg)=[0.0433(d-t)trθ ]/100000+l(the weight of two ends straight bend) |
| MOQ | 10 piece |
| Delivery Term | FOB(30% down payment in advance, the balance before shipment) CIF or C&F(30% in advance , the balance against with the copy of B/L) |
| Delivery time | 15~30 days after receipt of advanced payment |

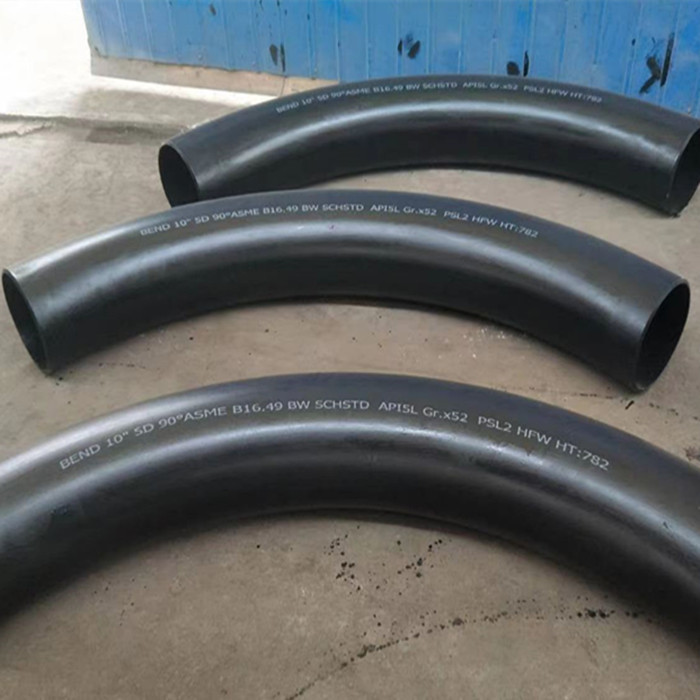

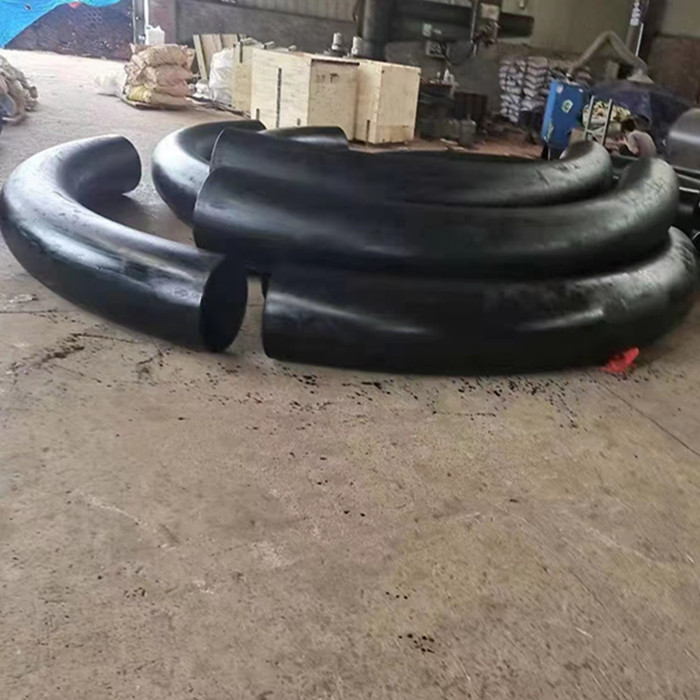

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
