2" Sch 40 ASME B16.9 Carbon Steel Elbow 90 Degree 45d MS A234 WPB Long Radius
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 piece | Price : | 0.15$ |
|---|---|---|---|
| Packaging Details : | Wooden box Wooden pallet | Delivery Time : | 10 Work Days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 100000 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-80" |
|
Detail Information |
|||
| Color: | Black Rust-proof | Name: | Carbon Steel Seamless Elbow |
|---|---|---|---|
| Standard: | ASTM ASME | Surface: | Sand Blasting Black Oil |
| Degree: | 90 /45/180 | Technics: | Hot Pushing |
| Size: | 3" | Material: | Carbon Steel |
| Country Of Origin: | China | Port: | Tianjin |
| High Light: | Sch160 Steel Pipe Fittings,1.5D ASTM Steel Pipe Fittings,LR Seamless Steel Elbow |
||
Product Description
Lr Elbow Sch160 Sch80 Carbon Steel Pipe Fittings Seamless Elbow Astm Black Color
In the pipeline system, the elbow is a pipe fitting that changes the direction of the pipeline. According to the angle, there are three most commonly used ones: 45° and 90°180°. In addition, according to engineering needs, it also includes other abnormal angle elbows such as 60°. The elbow materials are cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics.
The ways to connect with the pipe are: direct welding (the most common way) flange connection, hot melt connection, electrofusion connection, threaded connection and socket connection. According to the production process, it can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding elbow, etc. Other names: 90 degree elbow, right angle bend, etc.
Products Description:
|
Product name:
|
Carbon Steel Elbow ANSI B16.9 Black Painting Butt Weld Shourt / Long Radius Carbon Steel 90 Degree Elbow SCH 40
|
|
Keyword:
|
Elbows,Pipe Elbow,45 Degree Elbow Fittings,Stainless Steel Pipe Fitting,Steel Elbow,Carbon Steel Elbow,Fitting,90 Degree
Elbow,Steel Fitting |
|
Place of Origin:
|
HeBei, China
|
|
Brand Name:
|
AUTHENTIC
|
|
Model Number:
|
Elbow(45deg, 60deg,90deg and 180deg/LR and SR)
|
|
Steel:
|
Material:stainless steel: A403 WP304, A403 WP304L,A403 WP316, A403 WP316L, A403 WP321Carbon steel: A234WPB, A420 WPL6Alloy steel:
WP11, WP22, WP12, WP5, WP9, WP91 Stainless steel: A182 F304, A182F304L,A182 F316, A182 F316L, A182 F321, A182 317H, A182316Ti, F53,F51 Carbon steel: A105, A350LF2Alloy steel: A182 F11, A182F22, A182F12,A182 F5, A182F91, A182 F9 |
|
Connection:
|
Welding
|
|
Shape:
|
round
|
|
Head Code:
|
round
|
|
Surface:
|
Black painting or color painting for carbon steel and alloy steel fittings.
|
|
Usage:
|
Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
|
|
Standard:
|
ANSI B16.9, MSS SP 75, EN10253-2, JIS B2313
|
|
Packing:
|
carton box or wooden case
|
|
MOQ:
|
1 Piece
|
|
Type
|
Long radius 90 Deg Elbow,ELBO 90DEG LR SMLS, long radious elbow(LR elbow), seamless elbow,
butt welding elbow, carbon steel elbow(CS elbow), mild steel elbow(MS elbow), alloy steel elbow(AS elbow), stainless steel elbow(SS elbow), ( 15deg, 30deg, 45deg, 90deg, 180deg) |
|
Size
|
NPS1/2”-80”(DN15-1800)
|
|
Wall Thickness
|
SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP…….
|
|
Material
|
alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80……
stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/TP310…..
|
|
Standard
|
ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 /GB-12459/GB-T13401 etc…
we can also produce according to drawing by customers.
|

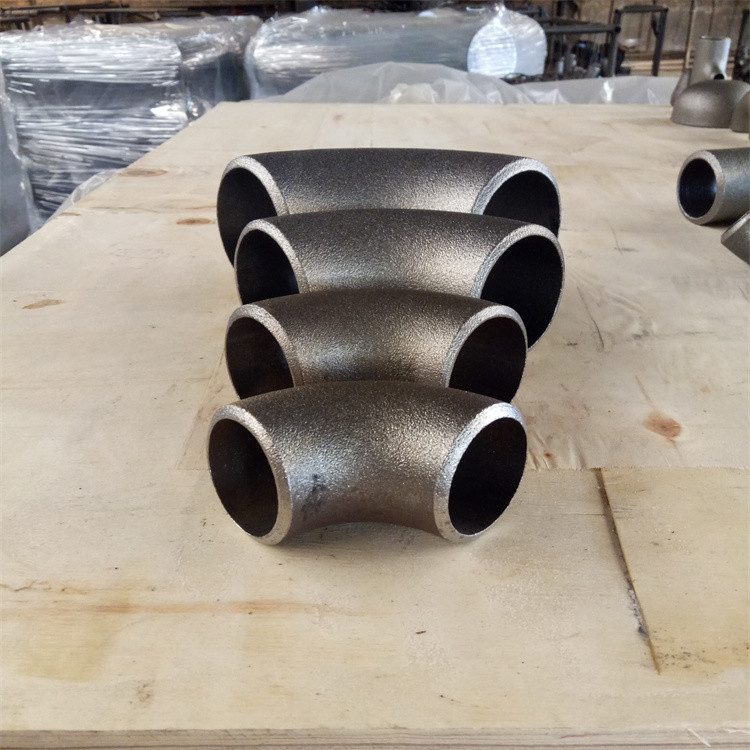

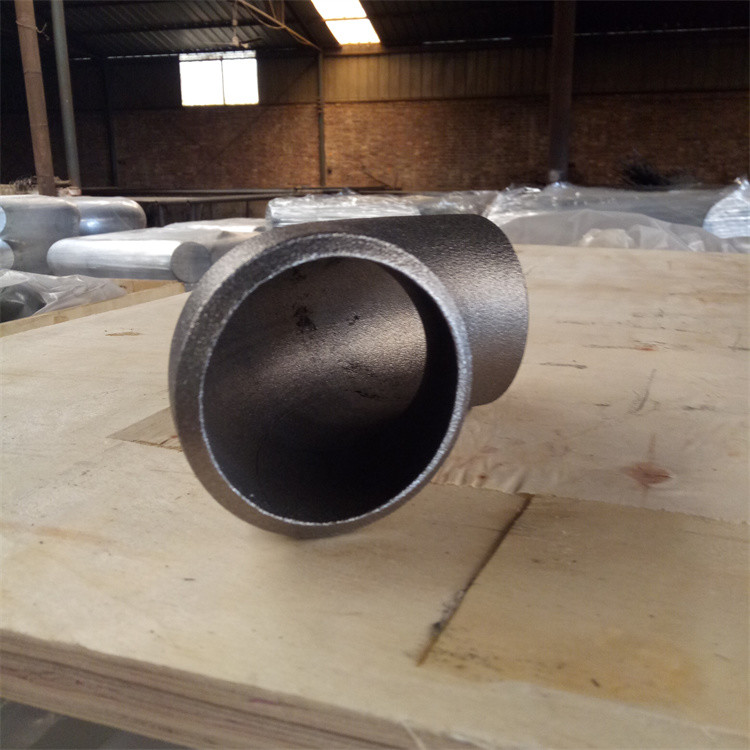

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
