Schedule 40 ERW Steel Pipe DN150 Cold Rolled A106 Weld
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 piece | Price : | 10$ |
|---|---|---|---|
| Packaging Details : | Wooden box Wooden pallet | Delivery Time : | 10 Work Days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 99999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Length: | 6M 12m | Name: | API 5L 3lpe Coated X70 20 Inch Carbon Steel Pipe ERW Steel Pipe |
|---|---|---|---|
| Straight Length: | According To The Clients′ Requirement | Surface: | Sand Rolling, Sand Blasting ,Acid Cleaning. |
| Transport Package: | Bulking | Connection: | Welding |
| Size: | 0.5"-72" | Grade: | Q235 |
| Applications: | Petroleum,chemical,power,gas,metallurgy, Shipbuilding, Construction, Etc | Process Method: | Polished, Cold Drawn, Annealed With Nitrogen Protection, Ultrasonic,automatic Shape Etc |
| High Light: | EN10219 ERW Steel Pipe,ASTM ERW Steel Pipe,A500 ERW Welded Pipe |
||
Product Description
En 10219 ASTM A500 Welded ERW Steel Pipe The Main Applications Of ERW Steel Pipe
ERW steel pipes and tube are available in various qualities, wall thicknesses, and diameters of the finished pipes.
Hot dip galvanized ERW steel pipe look a little rough compared to the electro-galvanized, silvery white, look prone process waterlines and a few drops of tumor is more obvious, especially in the one end of the workpiece. Hot dip galvanized zinc layer than a few times of the electro-galvanized thick corrosion protection is several times that of the electro-galvanized.
Products Description:
| Outer Diameter |
88.9mm---660.4mm |
| Thickness | 3mm--22mm |
| Length | 3m--20m |
| Tolerance | Meet the Standard or acc to your requirement |
| Standard | BS EN 10219, EN 10217, EN10224, ASTM A53, A106, API, JIS G3444, and GB/T3091, GB/T9711 |
| Grade | S235-S355, L235-L355, P195-P460, GR. A, GR. B, X42 ~ X70, J55, STK400, STK500,SS400, Q195, Q215, Q235, and Q345, |
| End Treatment | Beveled or Squared Cut, with or without Caps |
| Surface Treatment |
Varnished, 3PE, 3PP, FBE, Galvanized etc coated. |
| Application | Oil, gas, water transportation, piling, chemical&construction use. |
| Delivery Time |
15---35Days |
| Supply Ability | 30000 metric tons per month. |
| Technical requirements | For oil and gas transport | For low pressure fluid conveying |
| Material | Gr.b | Gr.b |
| Pipe body diameter | D＜508mm, ±0.75%; D≥508mm, ±0.75% | D≤168.3, ±1.0%; 168.3＜D≤508,±0.75%; |
| Wall thickness | D＜508mm,+15.0%,－12.5%; D≥508mm, +17.5%,－10% | ±12.5% |
| Bending | ≤0.2% | ≤0.2% |
| Ovality | D≥508mm,≤±1% | ≤±0.75% |
| Bevel | ≤1.59mm | ≤5mm |
| Hydrostatic testing | 100% | 100% |
| Nondestructive testing | 100% non-destructive weld inspection | Ultrasonic flaw detection is 100% |
Chemical composition in % For API 5L PSL1 ERW Steel Pipe
| TYPE | Steel grade | C . | Si | Mn . | P | S |
| API 5L PSL1 | B | ≤0.28 | - | ≤1.20 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X42 | ≤0.28 | - | ≤1.3 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X52 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X56 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X60 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X65 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X70 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |

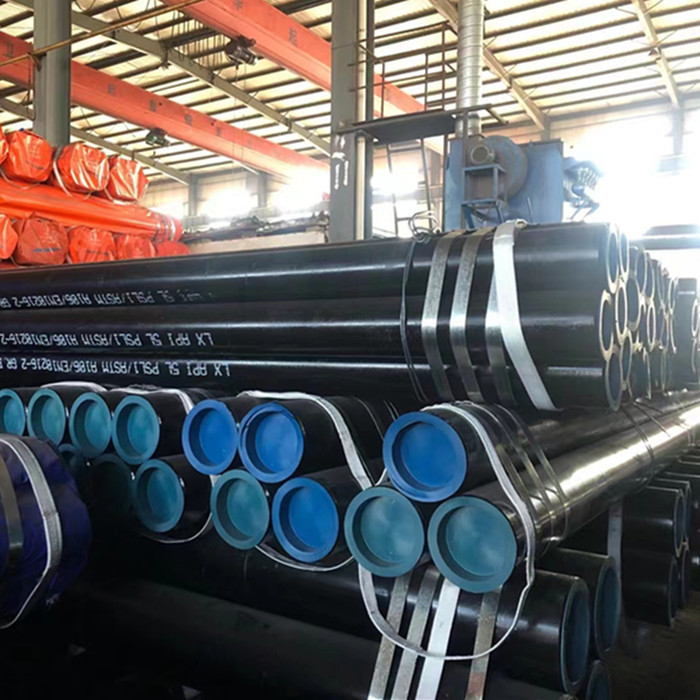

Products Pictures:

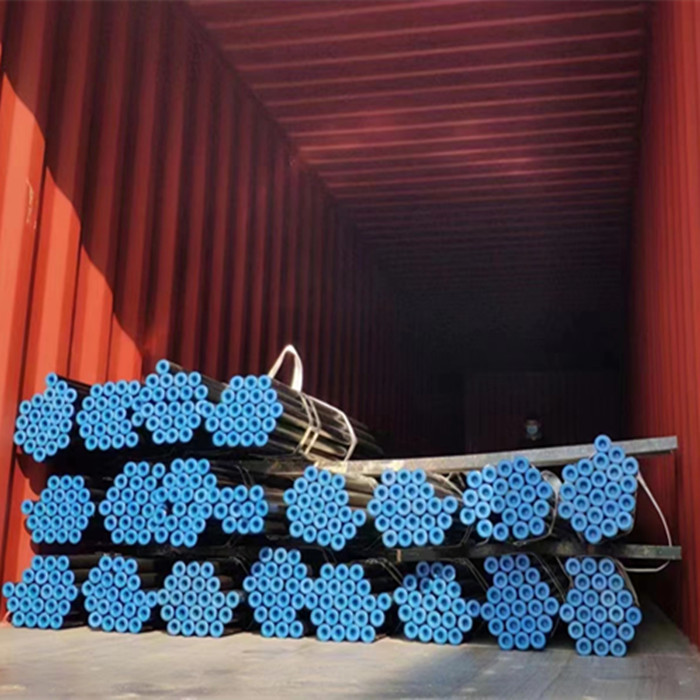

Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
