Dn100 Butt Welding Fittings STD Sch40 90 Degree Black Pipe Elbow
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 | Price : | 0.15 |
|---|---|---|---|
| Packaging Details : | wooden box/wooden pallets | Delivery Time : | 10 |
| Payment Terms : | T/T, D/P, L/C | Supply Ability : | 9999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Degree: | 30° 45° 60° 90° 180°,etc | Name: | Elbow |
|---|---|---|---|
| Material: | Carbon Steel，Seamless Steel | Technics: | Hot Pushing |
| Package: | Wooden Box Or Case | Wall Thickness: | STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160,XXS And Etc. |
| Standard: | ASTM JIS,GOST DIN BS | Certificate: | PED ISO API |
| High Light: | long radius elbow astm a234,cs elbow astm a234,long radius sch40 cs pipe elbow |
||
Product Description
Sch40 Carbon Steel 90 Degree Elbow Asme B16.9 Astm A234 For Pipeline
Butt welding fittings are commonly used in piping systems to connect pipes of different sizes or change the direction of the flow. These fittings are designed to be welded directly to the pipe ends and are typically made from the same material as the pipe.
Butt welding fittings include elbows, tees, reducers, caps, and stub ends. Elbows are used to change the direction of the flow, while tees are used to split the flow into two directions. Reducers are used to connect pipes of different sizes, while caps are used to close the end of a pipe. Stub ends are used in conjunction with lap joint flanges to allow for easy disassembly of the piping system.
Butt welding fittings are preferred over other types of fittings because they provide a smooth and continuous flow path with no obstruction or turbulence. They are also stronger than other types of fittings because they are welded directly to the pipe, creating a permanent and leak-free connection.
However, butt welding fittings require specialized equipment and skilled labor to install, which can make them more expensive than other types of fittings. Additionally, if not installed properly, they can lead to welding defects and leaks in the piping system. Therefore, it is important to follow proper installation procedures and guidelines to ensure the integrity and safety of the piping system.
Products Description:
| Elbow Type | Long radius elbow,Short radius elbow, 90 degree elbow, 45 degree elbow,180 degree elbow, reducing elbow. |
| Standard |
ASME B16.9, ASME B16.11, ASME B16.5; JIS B2311,JIS B2312,JIS B2313,JIS B2316; MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2615 SY/T 0510, SH 3408, SH3410 |
| Size | 1/2''-48''(Butt-welding and seamless);1/8''-4''(Threaded and socket-welding); 16''~72''(Welded) |
| Wall thickness | SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH100,SCH120,SCH40,SCH160,XXS |
| Manufacturing process | Hot forming, Push, Press, Forge, Cast, etc. |
|
Material
Carbon steel
Stainless steel
Alloy steel
Duplex steel
Nickel alloy steel |
Carbon steel elbow, stainless steel elbow, alloy steel elbow |
|
ASTM A234 WPB, ASTM A420 WPL6, WPL3; ASTM A105 WPB; ASTM A106; ASTM A350 LF2, DIN St37, St45.8, St52.4,St.35.8,St.35.8/I ASTM A333 GR.6, ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42, API 5L GRB, X60, X65, X42,X52, |
|
|
ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 ASTM A182 F 304, 304L,316, 316L,904L |
|
|
ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9 A420 WPL8, A420 WPL9 ASTM A335 P5, P9, P11, P12, P22, P91 ASTM A213 ASTM A182 F5,F11,F22,F91 |
|
| ASTM A182 F51/SAF 2205/S31803,F53/SAF 2507/S32750,F60/UNS S32205, | |
| Alloy 200/nickel 200/UNS S2200,Alloy 400/monel 400/UNS 4400,Alloy 600/Inconel 600/UNS 6600,Alloy 201/nickel 201/UNS S2201,Alloy 625/Inconel 625/UNS 6625/NS336,Alloy 800/Incoloy 800/UNS S8800, | |
| Packing |
1)seaworthy wooden box for fittings with size from 1/2"~14" 2)Seaworthy wooden pallet for fittings with size above 14" 3)According to the packing requirement of clients |
| Delivery time | with in 10-30 work days after received the deposit or L/C |
| Shipment | FOB Tianjin, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |

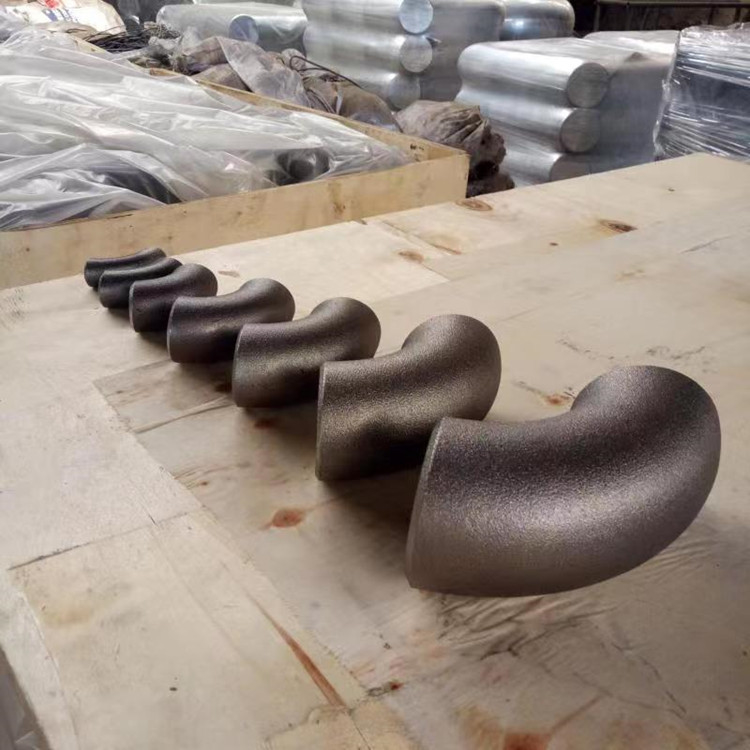

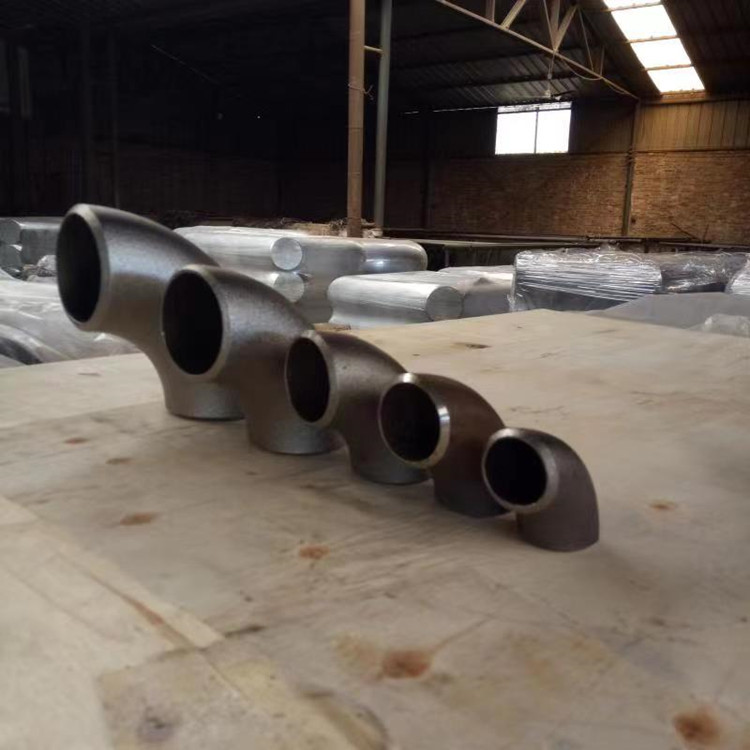

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment?
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
