Threaded Socket Welded Pipe Fittings Olet ASME 2000LBS 3000LBS
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 | Price : | 0.15 |
|---|---|---|---|
| Packaging Details : | wooden box/wooden pallets | Delivery Time : | 10 |
| Payment Terms : | T/T, D/P, L/C | Supply Ability : | 9999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Technics: | Casting | Product Name: | Socket Weld Union Connector Pipe Fitting |
|---|---|---|---|
| Standard: | ANSI B16.11 | Surface: | Polishing |
| Size: | 1/2' ~ 4' | Pressure Classes: | 2000# 3000# 6000# 9000# |
| Usage: | Water,steam,air,oil,gas,Plumbing,Machinery And So On | Packing: | Carton Box |
| Thread Standard: | BSPT NPT BSPP | ||
| High Light: | 304 stainless steel pipe union,threaded npt stainless steel pipe union,316 stainless steel threaded union |
||
Product Description
Factory stainless steel pipe fitting male& female union SS304/316 NPT threaded socket weld union connector Hexagon Union
Forged steel fittings are the fittings made by forged steel. The process of manufacturing forged steel fittings include: cutting and heating billets, put pressure on heated billets under dies into desired shape, trimming and shot blasting. Then machine forged blank fittings for net shape and dimensions.
According to the applications of forged steel fittings, they are available in threaded and socket weld end connections. The dimensions for socket weld forged steel fitting conform to ASME B16.11 and threaded forged steel fittings conform to ASME (American Society of Mechanical Engineers) B1.20.1.
Products Description:
| Name | Thread/ socket weld forged pipe fittings |
| Size | 1/8"-4"(6mm-100mm) |
| Standard | ANSI/ASMEB16.11/ MSSSP79/83/ 95/97/BS3799/ JIS2316etc |
| Material | Carbon Steel: A36, A105 Stainless Steel: ASTM A182 F304 /F304L /F316 /F316L /F321 Alloy Steel: ASTM A182 F5 /F9 /F11 /F2A350 LF2 |
| Type | Elbow, Cross, Street Elbow, Tee, Boss, Coupling, Half Coupling, Cap,Plug, Bushing, Union, Swage Nipple, Bull Plug, Reduced Insert, Pipe Nipple etc. |
| Connection Type | Socket-weld, Screwed ( NPT/ BSP), Butt weld |
| Pressure | Screwed end:2000lb/3000lb/6000lb; Socket weld end:3000lb/6000lb/9000lb; |
| Marking | 1.Carbon and alloy steel: marked by stamping. 2.Stainless:Marked by electroetched or jet printed or stamped 3.3/8" under: brand only 4.1/2" to 4": marked brand. material. heat no. b16 (blong to ANSI B16. 11 product),pressure and size. |
| Packing | Plastic bag , carton, pallet or as customer's requirment |
| Min Order Quantity | According to customer's requirement |
| Applications rang | Water, oil, gas and every kind of corrosive suitable for stainless steel |

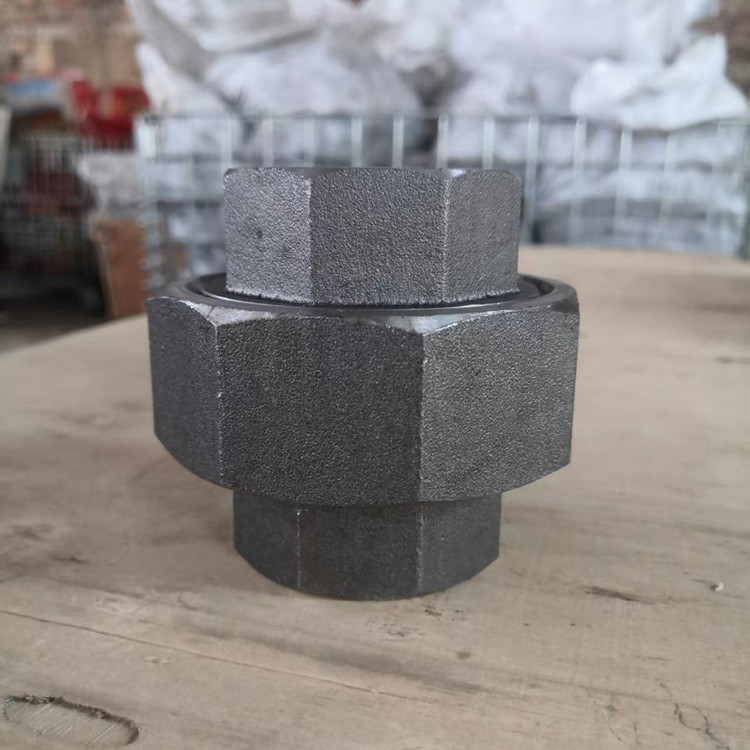

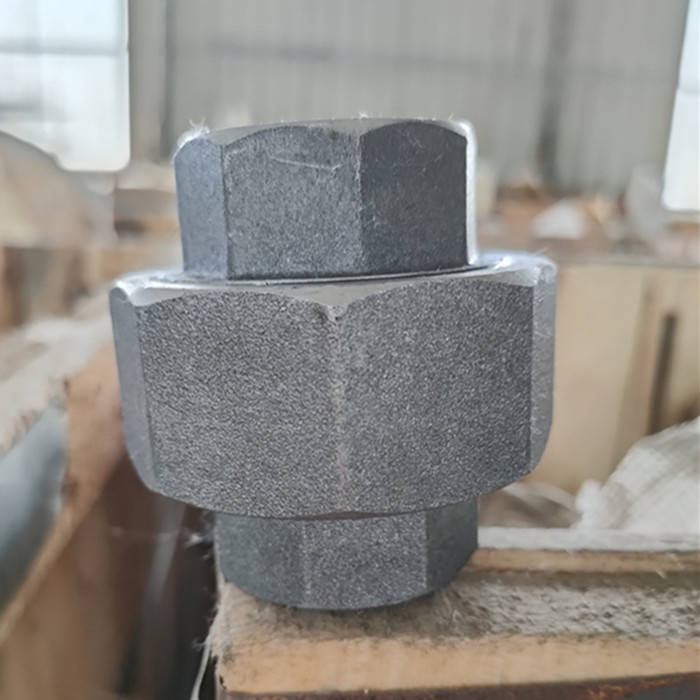

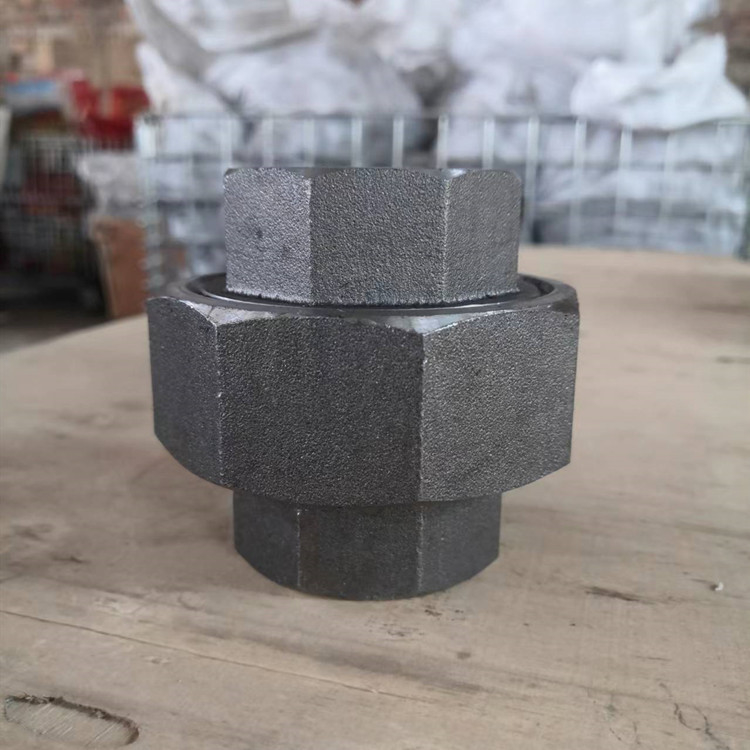

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment?
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
