ASME B16.9 Carbon Steel Bend Dsaw Sch40 90 Degree 5D Black Pipe Fitting
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 piece | Price : | 0.15$ |
|---|---|---|---|
| Packaging Details : | Wooden box Wooden pallet | Delivery Time : | 10 Work Days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 99999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Color: | Black | Country Of Origin: | China |
|---|---|---|---|
| Standard: | ASTM | Surface: | Sand Blasting Black Oil |
| Degree: | 90 /45/180 | Technics: | Equal |
| Size: | 8" | Name: | 3D Bend |
| Head Code: | Round | Specification: | 14“ |
| High Light: | 3d carbon steel bend,2" carbon steel bend |
||
Product Description
ASME B16.9 A234 Wpb Butt Weld 3D Carbon Steel Pipe Fitting Bend 2" Black 30 Deg
ASTM A234 WPB and A106B are the representative material of carbon steel pipe bend, which is used to change the direction of run pipe fluid. It takes the largest proportion in fittings that are used in piping system, about 80%. It can match long distance transition requirement.
Pipe bend has the same function as pipe elbow. But their bending radius are different. The radius of bend is larger than 1.5D, and could be 2D bends, 2.5D bends, 3D bends, 4D bends, 5D bends, and 10D bends. Pipe elbows have 1D and 1.5D bend radius which mean short radius elbow and long radios elbow.
Carbon steel pipe bend are available in ASTM A234 WPB, WPC, A106B, A860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70. And size is from DN20 to DN1200.
Products Description:
| O.D. | Seamless: From 1/2" up to 48" DN15-DN1200 Welded: From 26" up to 80" DN650-DN2000 |
| W.T. | Sch10, Sch20, Sch30, Sch40, STD, Sch80, XS, Sch120, Sch160, XXS |
| Bending Radius (R) | R=3D 4D 5D 6D 7D 8D 9D 10D. |
| Bending angle (θ ) | 15o 30o 45o 60o 90o 135o180o, and also could manufacture according to the angles given by the clients. |
| Straight Length (L) | The length between two ends general from 300mm-1500mm, and also can produce according to the clients' requirement to product. |
| Material | A234-WPB, A420-WPl6, A234-WP11, A234-WP5, A403-WP304, A403-WP304L, A403-WP316, A403-WP316L, SS304, SS304L, SS316, SS316L |
| Application Standard | ASTM B16.9, ASTM B16.11, ASTM B16.28, JIS B2311/2220, DIN2617/2616/2615/2391 |
| Forming | Hot formed, cold drawn |
| Type | Seamless and Welded, LR & SR |
| End | Bevel, plain, thread, socket |
| Surface Treatment | 1) Sandblasting 2) Paint black lacquer or transparent oil on surface to prevent corrosion |
| Application | Petroleum industry, refinery company, fertilizer industry, power station, shipbuilding, onshore platform. |
| Packing | 1) Seaworthy wooden box for fittings with size from 1/2" ~ 14" 2) Seaworthy wooden pallet for fittings with size above 14" 3) According to the packing requirement of clients |
| Weight | Weight (kg)=[0.0433(d-t)trθ ]/100000+l(the weight of two ends straight bend) |
| MOQ | 10 piece |
| Delivery Term | FOB(30% down payment in advance, the balance before shipment) CIF or C&F(30% in advance , the balance against with the copy of B/L) |
| Delivery time | 15~30 days after receipt of advanced payment |

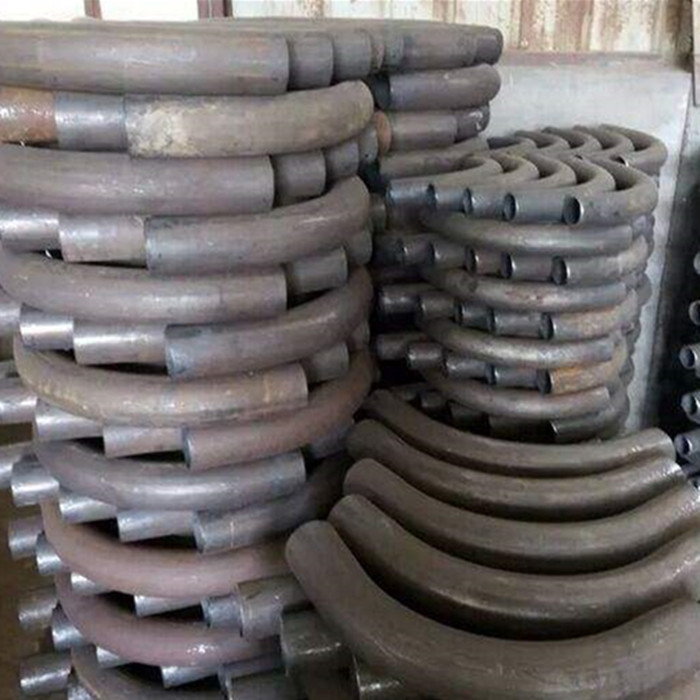

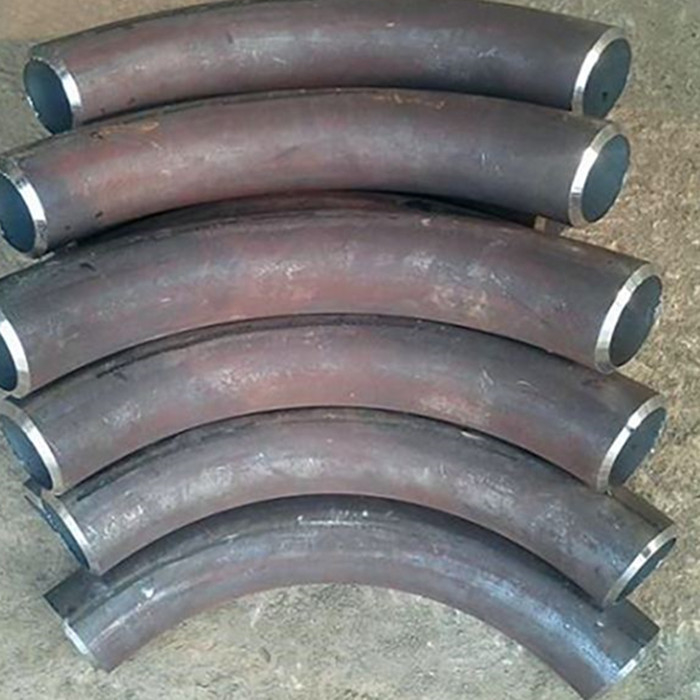

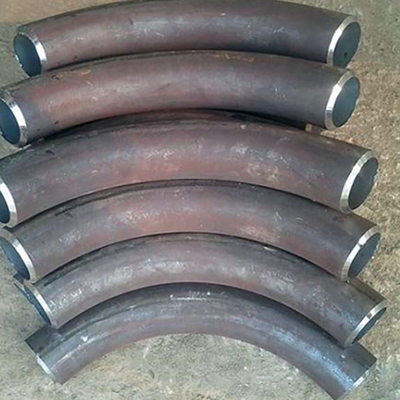

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
