300LBS Carbon Steel Flanges Q235 Weld Neck RF Flange 8 Inch A106
Contact Person : John Lee
Phone Number : +86-13663270486
WhatsApp : +8613663270486
| Minimum Order Quantity : | 1 | Price : | 0.15 |
|---|---|---|---|
| Packaging Details : | wooden box/wooden pallets | Delivery Time : | 10 |
| Payment Terms : | T/T, D/P, L/C | Supply Ability : | 9999 |
| Place of Origin: | CHINA | Brand Name: | Yi Sheng |
|---|---|---|---|
| Certification: | ISO 9001 BV | Model Number: | 1/2"-72" |
|
Detail Information |
|||
| Name: | Flanges | Technics: | Forged |
|---|---|---|---|
| Material: | Carbon Steel | Standard: | GOST/DIN/ASTM/EN |
| Packing: | Wooden Case | Connection: | Welding |
| Sealing Surface: | RF | Flange Facing: | RF, FM, Tg, FF, Rtj |
| Specification: | 1/2" To 60" | Production Capacity: | 1000, 000 Tons Per Year |
| Custom: | Available | Manufacturing Way: | Forging |
| High Light: | rf carbon steel weld neck flange,class300 carbon steel weld neck flange,rf asme steel welding neck flange |
||
Product Description
Welded neck flange not easy to distortion, good sealing, widely used, butt thinning transition weld joints ,horn shape, avoid shape change when welding in high temperature. applicable to high temperature pipeline, high pressure and low temperature pipeline, normally used to connect pipes and valves which PN is greater than 2.5MPa; also used to transport expensive, flammable, explosive media pipeline.
Products Description:
| Technology | Forging | |
| Size Range | DN 10 - DN 2000 | |
| 1/2"- 48" | ||
| Pressure Ratings | Class | 150#, 300#, 600#, 900#, 1500#, 2500#, etc. |
| PN | PN2.5, PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, etc. | |
| Sealing Type | FF, RF, RJ, FM, M, T, G, etc. | |
| Sealing Finish | Smooth or Spiral Finish (As your request) | |
| Materials | Stainless steel | ASTM A182 Gr. F304/304L/316/316L ASTM A403 WP304/304L/316/316L ASTM A351 Gr. CF3/CF8/CF3M/CF8M |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501 and etc. | |
| Varieties | PL (Plate Flat), WN (Weld Neck), BL (Blind), SO (Slip-ons), SW (Socket Welds), TH (threaded), LJ/SE(Lapped Flange/Stub ends), PJ/SE, LF/SE, etc. | |
| Standard | USA | ASME B16.5, ASME B16.47, MSS SP-44, AWWA C207 |
| European Union | EN 1092-1 | |
| Britain | BS 4504, BS 10 | |
| Australia | AS 2129, AS/NZ 4087, AS 4331 | |
| New Zealand | AS/NZ 4087 | |
| Russia | GOST 12820, GOST 12815, GOST 12821, GOST 33259 | |
| Germany | DIN 2627 - DIN 2638, DIN 2558, DIN 2665 - DIN 2569, DIN 2573, DIN 2576, DIN 2641, etc. | |
| Korea | KS B1503 | |
| Japan | JIS B2220 | |
| South Africa | SABS 1123, SANS 1123 | |
| ISO | ISO 7005-1 | |
| Package | PE film + Plywood case | |
| Trade Terms | EXW, FOB, CFR, CIF, etc. | |
| Payment Terms | T/T, L/C, CAD, Credit Card | |
| Delivery Time | Within 20 days for massive quantity Within 7 days for stock products |
|
| Application | Petrochemical & Gas industry, chemical, machinery, electric power, shipbuilding, papermaking, construction Water works, Shipbuilding industry, Power industry, Valve industry,and general pipes connecting projects etc. | |

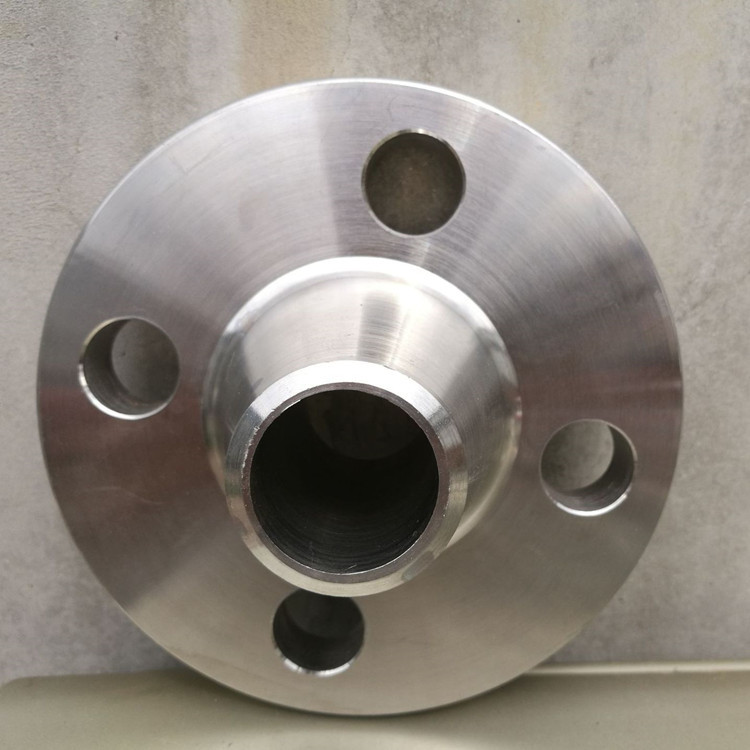

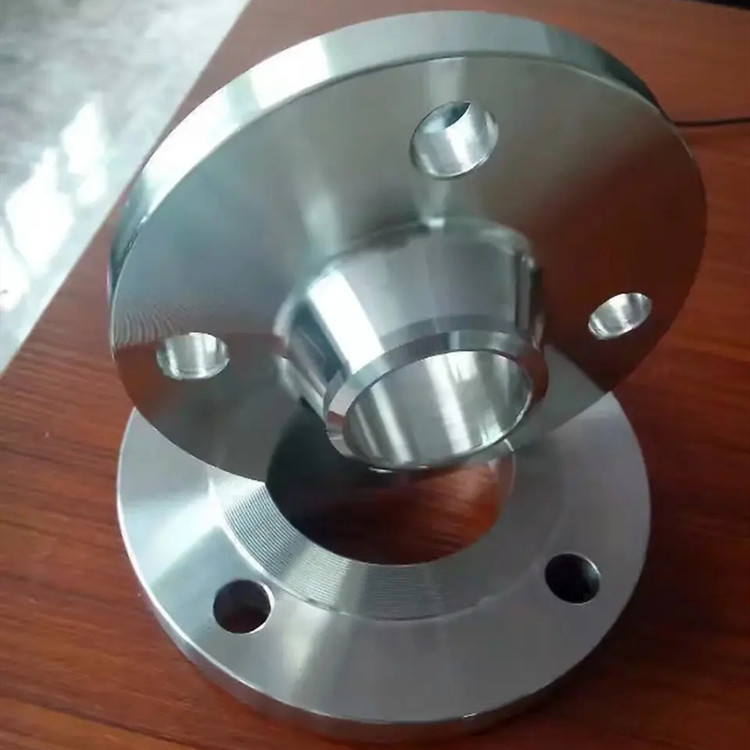

Products Pictures:
Packaging&Transportation :
Company Profile :
HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.
Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.
We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer .
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment?
Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
