304 / 304l / 316 / 316l Socket Weld Elbow Asme B16.11 Ss Socket Weld Fittings 1/8 Inch

Product Description

High Pressure Socket Weld Elbow Stainless Steel 304 / 304l / 316 / 316l Forged Pipe Fitting ASME B16.11

Socket and insert pipe fittings are mainly divided into high-pressure pipe connection fittings, which are formed from round steel or steel ingot die-forging blanks, and then machined by lathes, and pp resin-modified polypropylene low-pressure pipes adopt curved elastic double-melt socket connection fittings. Bullet double-melt pipe fittings.

Connection Type
The connection forms of the socket fitting series include: socket welding connection (SW), butt welding connection (BW), threaded connection (TR), curved elastic double fusion socket connection

Folding pressure level
The pressure rating of socket and socket fittings is generally divided into 3000LB (SCH80), 6000LB (SCH160) and 9000 (XXS) in the form of socket welding and butt welding connection. The pressure grades of pipe fittings in the form of threaded connections are divided into 2000LB, 3000LB and 6000LB.

Nominal pressure of curved double-melt low-pressure pipe fittings: PN2.5MPa

Commonly used standard
Pipe fittings manufacturing standard reference: CJ/T 321-2010, ASME B16.11, HG/T 21634-1996, MSS SP-83, MSS SP-79, MSS SP-97, MSS SP-95, GB/T 14383-2008 , SH/T3410-96, GD2000, GD87, 40T025-2005, etc., and can also be manufactured according to the drawings for non-standard processing.

Common materials
Commonly used raw materials for socket fittings are generally divided into carbon steel, stainless steel, alloy steel, polypropylene ppr, etc.

Common grades of carbon steel are Q235, 20#, A105, etc.;

Common grades of stainless steel are 304, 304L, 316, 316L, 321, 00Cr17Ni14Mo2, etc.;

Common grades of alloy materials are 15CrMo, 1Cr5Mo, 16Mn, 12Cr1MoV, F11, F22, 10CrMo910, etc.

Other materials: copper alloy, nickel alloy, etc.

Products Description:

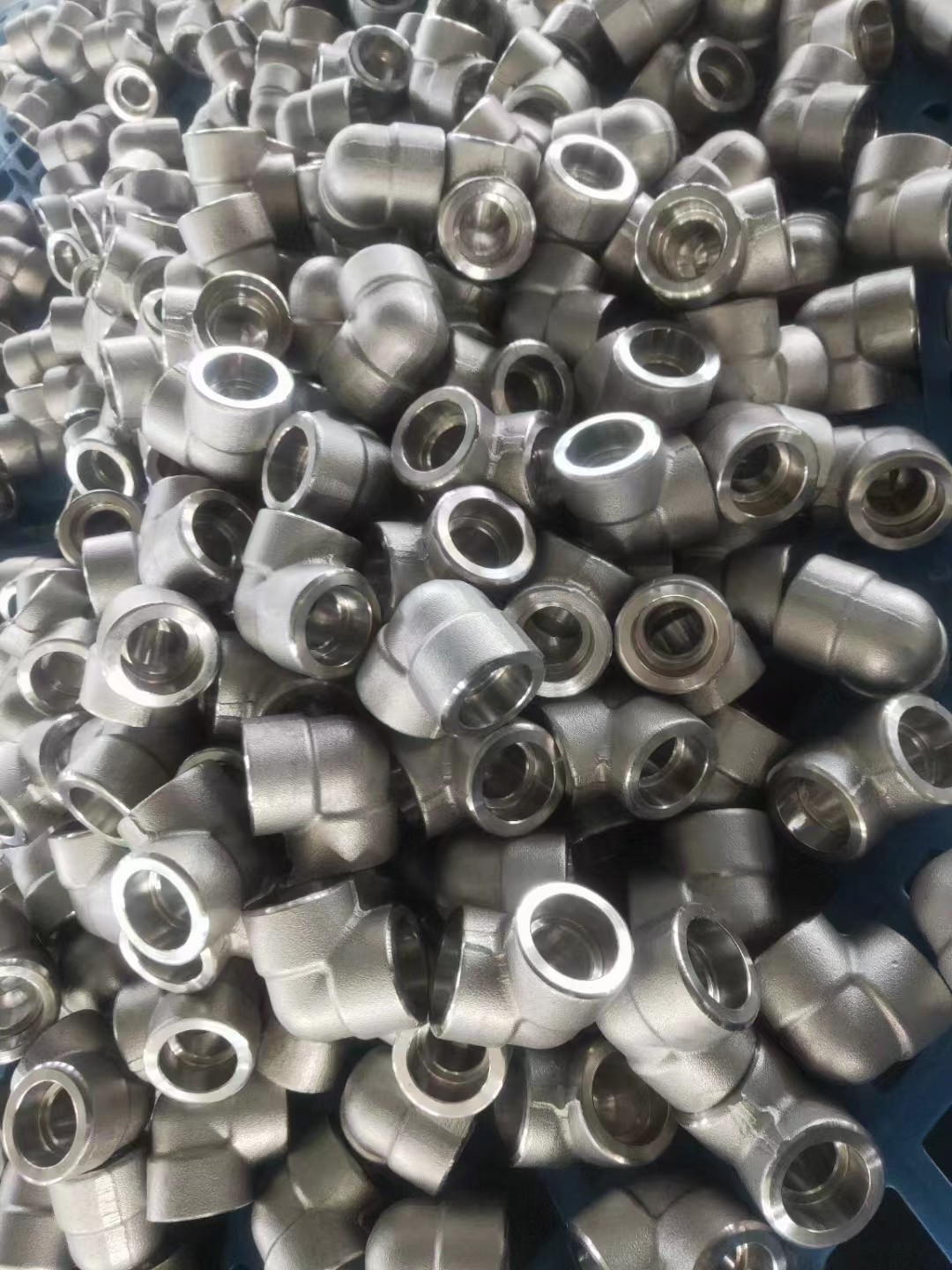

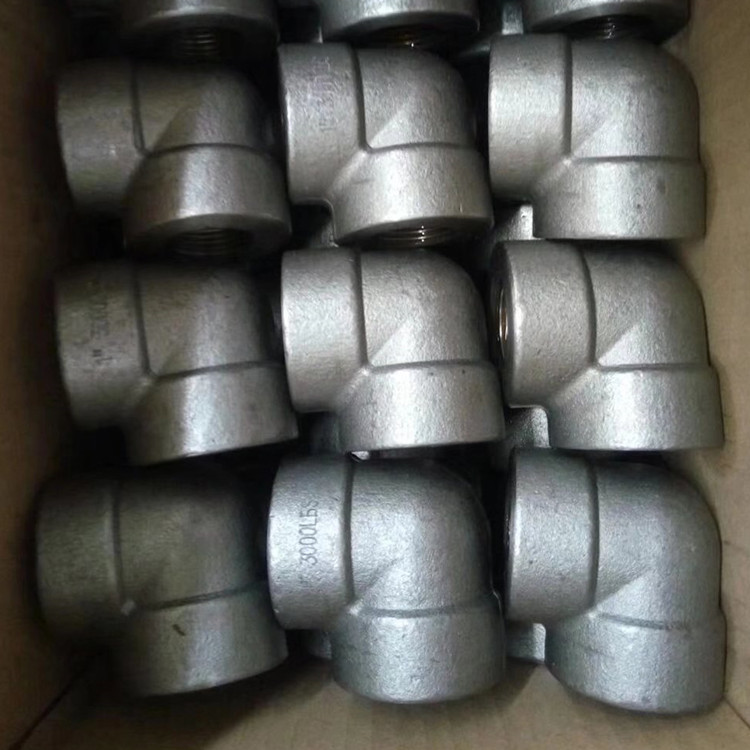

Products Pictures:

Packaging&Transportation :

Company Profile :

HEBEI YISHENG PIPING CO., LTD. was founded in 1998 and located in the hometown of martial art ----Cangzhou city,China. Our factory is set up in Zhangguandian Industrial Area,Mengcun County. The traffic is very convinient around our factory.

Our company mainly produce piping equipments including stainless, carbon and alloy steel pipe fittings which are used in oil project ,chemical industry and so on. We have many lines for producing elbows, Tees, educers,caps and flanges. With the most efficient machines and the advanced testing machines, we can produce varies kinds of pipe fittings for you.With it's standards covers from Japanese, American and Germany standard . In order to establish good reputation around the world's market, we will strengthen our management and improve our service continuously.

We welcome you to visit our factory in the near future and hope we can start a good relationship very soon.

FAQ

　1. Are you trading company or manufacturer?

　　We are manufacturer .

　2. How long is your delivery time?

       Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    3. Do you provide samples? Is it free or extra?

　　Yes, we could offer the sample for free charge but need pay the cost of freight.

    4. What is your terms of payment?

        Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.
